RS601HK系列 防水翘板开关
面板尺寸：10.5mm X 15mm
安装孔尺寸：9.0mm~9.1mm X 13.5mm~13.7mm
控制电路数：单刀（SP）
特点：IP65引水式防水防尘设计
RS601HK 为 RS601H 迷你型翘板开关架构的延伸型防水产品，维持相同的安装孔尺寸设计，可与RS601H型号实现无缝替换，满足客户在普通与防水开关间的灵活选择需求。本产品采用引流式防水防尘设计，液体可经由泄水孔快速排出，有效隔离电气关键结构，提升防护效能，确保开关於潮湿或易溅水环境中稳定运作。
安装孔尺寸：9.0mm~9.1mm X 13.5mm~13.7mm
控制电路数：单刀（SP）
特点：IP65引水式防水防尘设计
RS601HK 为 RS601H 迷你型翘板开关架构的延伸型防水产品，维持相同的安装孔尺寸设计，可与RS601H型号实现无缝替换，满足客户在普通与防水开关间的灵活选择需求。本产品采用引流式防水防尘设计，液体可经由泄水孔快速排出，有效隔离电气关键结构，提升防护效能，确保开关於潮湿或易溅水环境中稳定运作。

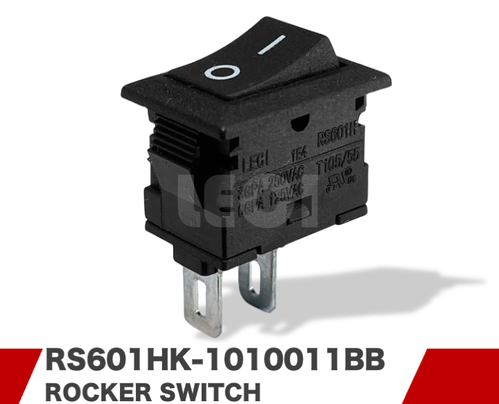

RS601HK-1010011BB
Standard Version Ratings: 6A125V 3A250V 3A/40A 250V
High Current Version Ratings: 6A250V 3A250V 3A/40A 250V
Insulation Resistance: ≥ 100MΩ at 500V DC
Contact Resistance: ≤ 50mΩ
Dielectric Strength: 1500VAC (50–60Hz) for 1 minute
Operating Temperature: -10°C ~ 105°C
Solderability: 230±10°C for 3±1 seconds
Solder Heat Resistance:
255±5°C for 3±1 seconds(Reflow soldering) 350±10°C for 3±0.5 seconds(Manual soldering)
Cold Resistance: -20±2°C for 96 hours
Humidity Resistance: 40±2°C, 90–95% RH for 96 hours
Mechanical Life: 10,000 cycles
High Current Version Ratings: 6A250V 3A250V 3A/40A 250V
Insulation Resistance: ≥ 100MΩ at 500V DC
Contact Resistance: ≤ 50mΩ
Dielectric Strength: 1500VAC (50–60Hz) for 1 minute
Operating Temperature: -10°C ~ 105°C
Solderability: 230±10°C for 3±1 seconds
Solder Heat Resistance:
255±5°C for 3±1 seconds(Reflow soldering) 350±10°C for 3±0.5 seconds(Manual soldering)
Cold Resistance: -20±2°C for 96 hours
Humidity Resistance: 40±2°C, 90–95% RH for 96 hours
Mechanical Life: 10,000 cycles
